Pedrollo JSW/3BM (400V) irrigation pump (7.2 cubic meters) (5.8 bar)

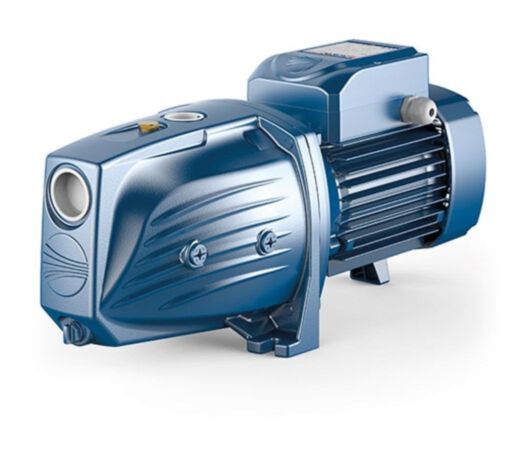

Pedrollo JSW/3BM self-priming centrifugal pump:

The Pedrollo JSW/3BM self-priming centrifugal pump is very suitable for sucking in water at great depths. The Pedrollo JSW/3BM pump has a self-priming capacity of up to 9 meters deep, which makes this pump ideal for connecting to a water source for your garden irrigation or pressurized water system.

The JSW series is made of high quality materials, such as; Stainless steel AISI 430F pump shaft, brass impeller (JSW2 has stainless steel AISI 304 impeller), ceramic granite - NBR mechanical seal. In short, this pump certainly belongs to the professional segment of self-priming pumps.

The Pedrollo JSW/3BM is a 400V (2HP) version and is equipped with a venturi, which gives this pump extra suction power and can process small amounts of sucked-in air.

This pump has a 1 1/4'' suction and a 1'' pressure connection and a maximum head of 5.8 Bar.

Pump curve JSW/3BM:

Capacity (Ltrs/min) - head (bar)

5 L/min. - 5.8 bar
30 L/min. - 5.1 bar
50 L/min. - 4.5 bar
120 L/min. - 3.0 bar

By equipping the pump with a Presflo you can turn it into a fully automatic pressure-controlled pump. (For more information see below under related products: Presflo)

This pump is often used for:
-Garden irrigation (by means of connection to source or buffer tank)
-Pressure increase
-Hydrophor set
-Deferrization system
-Domestic / light industrial use (For connection to drinking water we recommend the Pedrollo JCR)

Product specifications JSW/3BM:

Pump type: Pedrollo JSW/3BM
Voltage: 400 Volts
Power: 2 HP ''“ 1.5 KW
Capacity in litres/minute: 10-120
Pressure in bar: 5.8-3.0
Press connection: 1" female thread
Suction connection: 1 1/4" female thread
Impeller material: brass
Pump shaft material: stainless steel AISI 430F
Shaft seal/seal: ceramic-graphite-NBR
Maximum medium temperature: 40 °C
Maximum suction depth: 9 meters

Do you want the Pedrollo JSW/3BM in your garden? Feel free to contact us for more information.
