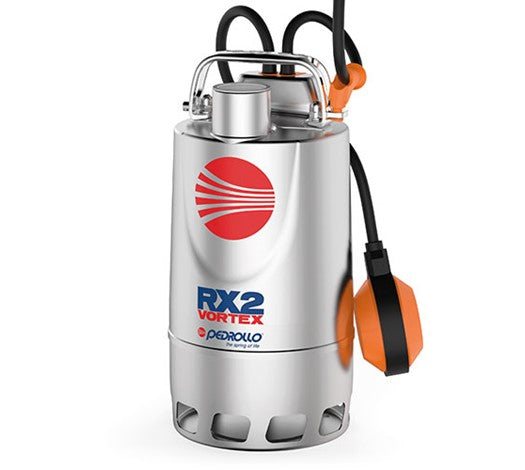

Pedrollo RXm Vortex

The RX-VORTEX series pumps are suitable for use with dirty water. The chosen design solutions, such as the complete cooling of the motor, guarantee the reliability of the pump.
They are suitable for use in domestic applications, such as for the disposal of dirty water containing suspended solids.

Liquid type: Dirty water

Usage: domestic, civil

Applications: transfer of liquids, emptying tanks, drainage, dirty water - light solid particles

typology: submersible

Family: waste water drainage

Performance range:

Flow rate up to 380 l/min (22.8 m³/h)
Head up to 13 m
Application limit:

Temperature of the liquid up to +50 °C
10 m maximum immersion depth
(with a sufficiently long power cable)
Solids passage:
– up to Ø 20 mm for RX 2/20, RX 3/20
– up to Ø 40 mm for RX 4/40, RX 5/40
Suction Level:
– 25 mm above the ground for RX 2/20, RX 3/20
– 50 mm above the ground for RX 4/40, RX 5/40
Continuous service S1
