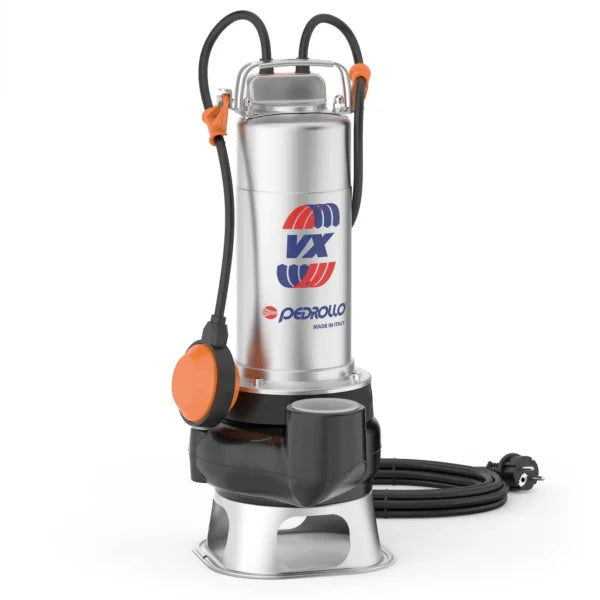

Pedrollo VX

VX pumps are recommended for domestic, civil and industrial applications in all cases where the water contains suspended solids up to Ø 50 mm, e.g. groundwater, surface water, sewage and dirty water.
For example, they are suitable for emptying flooded areas such as basements, underground car parks, car washes, emptying cesspits and for disposing of waste water.
These pumps are distinguished by their reliability, which is best appreciated under automatic operating conditions in fixed installations

Liquid type: Sewage

Usage: Household, Civil, Industrial

Applications: wastewater treatment, liquid transfer, tank emptying, drainage

typology: submersible

Family: sewage pumps

Performance Range:

Flow rate up to 750 l/min (45.0 m³/h)
Head up to 15.50 m
Application Limit:

Temperature of the liquid up to +40 °C
5 m maximum immersion depth
(with a sufficiently long power cable)
Passage of Solids:
– up to Ø 40 mm for VX /35
– up to Ø 50 mm for VX /50
Minimum immersion depth for continuous use:
– 290 mm for VX 8 and VX 10
– 330mm for VX 15
– 360mm for VX 20
