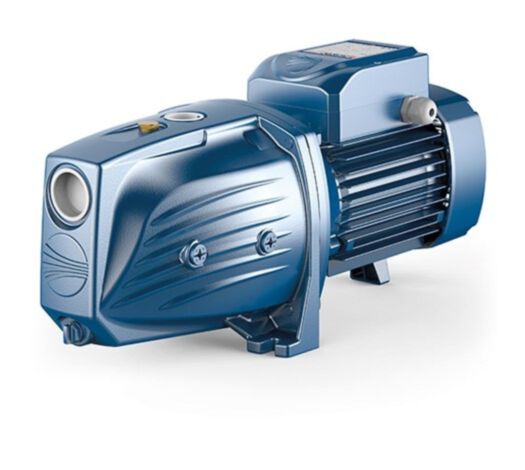

Pedrollo JSWm/3AL self-priming centrifugal pump:
The Pedrollo JSWm/3AL self-priming centrifugal pump is very suitable for sucking in water at great depths. The Pedrollo JSWm/3AL pump has a self-priming capacity of up to 9 meters deep, which makes this pump ideal for connecting to a water source for your garden irrigation or pressurized water system.
The JSW series is made of high quality materials, such as; Stainless steel AISI 430F pump shaft, brass impeller (JSW2 has stainless steel AISI 304 impeller), ceramic granite - NBR mechanical seal. In short, this pump certainly belongs to the professional segment of self-priming pumps.
The Pedrollo JSWm/3AL is a 230V (3HP) version and is equipped with a venturi, which gives this pump extra suction power and can process small amounts of sucked-in air.
This pump has a 1 1/4'' suction and a 1'' pressure connection and a maximum head of 6.0 Bar.
Pump curve JSWm/3AL:
Capacity (Ltrs/min) - head (bar)
5 L/min. - 6.0 bar
30 L/min. - 5.5 bar
50 L/min. - 5.1 bar
100 L/min. - 4.2 bar
160 Ltr/min. - 3.5 bar
This pump is often used for:
- Garden irrigation (by means of connection to source or buffer tank)
- Pressure increase
- Pressurized water set
- Deferrization system
- Domestic / light industrial use (For connection to drinking water we recommend the Pedrollo JCR)
Fully automatic pump & thermal protection
By equipping the pump with a Mass control you can turn it into a fully automatic pressure-controlled pump. The Mass Control the pump will turn on and off automatically with pressure changes. In addition, you also immediately have a thermal and dry-running protection. (For more information see below under related products: Masscontrol)
Product specifications JSWm/3AL:
Pump type: Pedrollo JSWm/3AL
Voltage: 230 Volts
Power: 3 HP ''“ 2.2 KW
Capacity in litres/minute: 10-160
Pressure in bar: 6.0-3.5
Press connection: 1" female thread
Suction connection: 1 1/4" female thread
Impeller material: brass
Pump shaft material: stainless steel AISI 430F
Shaft seal/seal: ceramic-graphite-NBR
Maximum medium temperature: 40 °C
Maximum suction depth: 9 meters
Do you want the Pedrollo JSWm/3AL in your garden? Feel free to contact us for more information.
