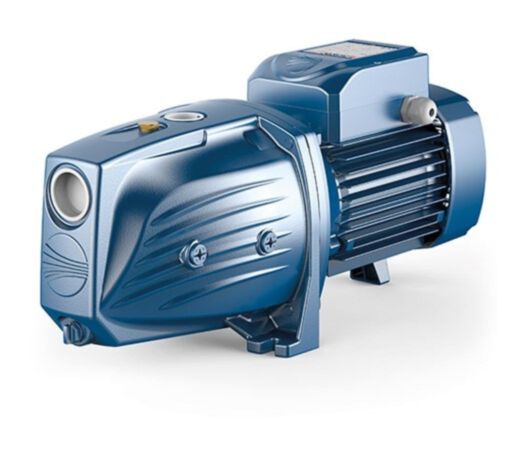

Pedrollo JSWm/3BL 230V irrigation pump (9.6 cubic meters) (max pressure 4.8 bar)

Pedrollo JSWm/3BL self-priming centrifugal pump:

The Pedrollo JSWm/3BL self-priming centrifugal pump is very suitable for sucking in water at great depths. The Pedrollo JSWm/3BL pump has a self-priming capacity of up to 9 meters deep, which makes this pump ideal for connecting to a water source for your garden irrigation or pressurized water installation.

The JSW series is made of high quality materials, such as; Stainless steel AISI 430F pump shaft, brass impeller (JSW2 has stainless steel AISI 304 impeller), ceramic granite - NBR mechanical seal. In short, this pump certainly belongs to the professional segment of self-priming pumps.

The Pedrollo JSWm/3BL is a 230V (2HP) version and is equipped with a venturi, which gives this pump extra suction power and can process small amounts of sucked-in air.

This pump has a 1 1/4'' suction and a 1'' pressure connection and a maximum head of 4.8 Bar.

Pump curve JSWm/3BL:

Capacity (Ltrs/min) - head (bar)

5 L/min. - 4.8 bar
30 L/min. - 4.3 bar
50 L/min. - 3.9 bar
100 L/min. - 3.0 bar
160 Ltr/min. - 2.2 bar

This pump is often used for:

• Garden irrigation (by means of connection to source or buffer tank)
• Pressure increase
• Pressurized water set
• Deferrization system
• Domestic / light industrial use (For connection to drinking water we recommend the Pedrollo JCR)

Fully automatic pump & thermal protection

By equipping the pump with a Presflo Vario you can turn it into a fully automatic pressure-controlled pump. The Presflo Vario the pump will turn on and off automatically with pressure changes. In addition, you also immediately have a thermal and dry-running protection. (For more information see below under related products: Presflo Vario)

Product specifications JSWm/3BL:

Pump type: Pedrollo JSWm/3BL
Voltage: 230 Volts
Power: 2 HP ''“ 1.5 KW
Capacity in litres/minute: 10-160
Pressure in bar: 4.8-2.2
Press connection: 1" female thread
Suction connection: 1 1/4" female thread
Impeller material: brass
Pump shaft material: stainless steel AISI 430F
Shaft seal/seal: ceramic-graphite-NBR
Maximum medium temperature: 40 °C
Maximum suction depth: 9 meters

Do you want the Pedrollo JSWm/3BL in your garden? Feel free to contact us for more information.
